Typical Types
| Product No. | Weave style | Area weight (g/m2) | Density( count/cm) | Thickness （mm） |
Fiber type | ||
| Warp | Weft | ||||||
| SXCWP120 | Plain | 120 | 9 | 9 | 0.19 | 1k | |
| SXCWP200 | Plain | 200 | 5 | 5 | 0.26 | 3k | |
| SXCWP240 | Plain | 240 | 6 | 6 | 0.32 | 3k | |
| SXCWP320 | Plain | 320 | 4 | 4 | 0.42 | 6k | |
| SXCWP360 | Plain | 360 | 4.5 | 4.5 | 0.48 | 6k | |
| SXCWP400 | Plain | 400 | 2.5 | 2.5 | 0.53 | 12k | |
| SXCWP480 | Plain | 480 | 3 | 3 | 0.64 | 12k | |
| SXCWT120 | Twill | 120 | 9 | 9 | 0.19 | 1k | |
| SXCWT200 | Twill | 200 | 5 | 5 | 0.26 | 3k | |
| SXCWT240 | Twill | 240 | 6 | 6 | 0.32 | 3k | |
| SXCWT320 | Twill | 320 | 4 | 4 | 0.42 | 6k | |
| SXCWT360 | Twill | 360 | 4.5 | 4.5 | 0.48 | 6k | |
| SXCWT400 | Twill | 400 | 2.5 | 2.5 | 0.53 | 12k | |
| SXCWT480 | Twill | 480 | 3 | 3 | 0.64 | 12k | |
| SXCWT600 | Twill | 600 | 4 | 4 | 0.64 | 12k | |

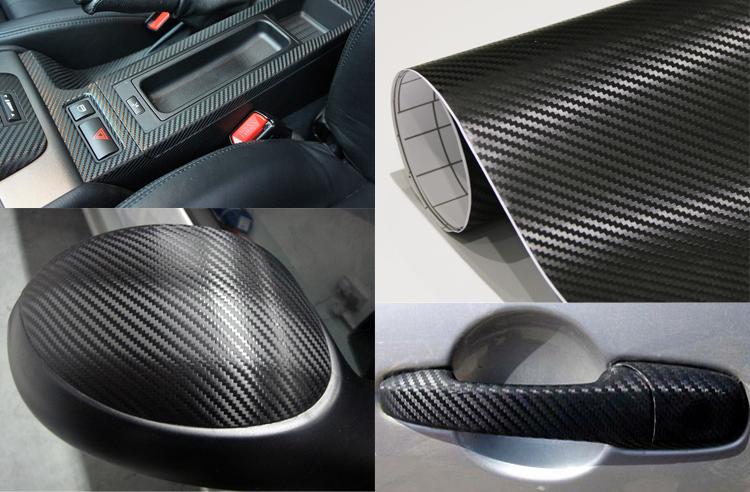

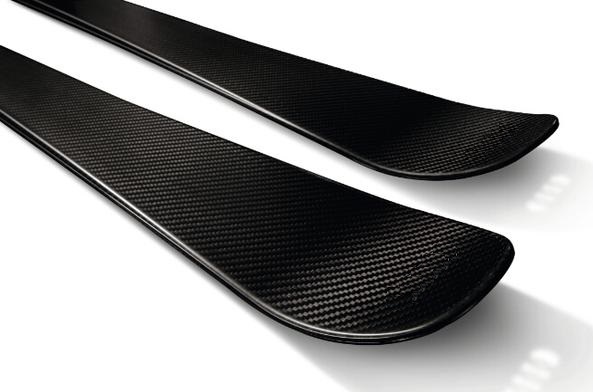

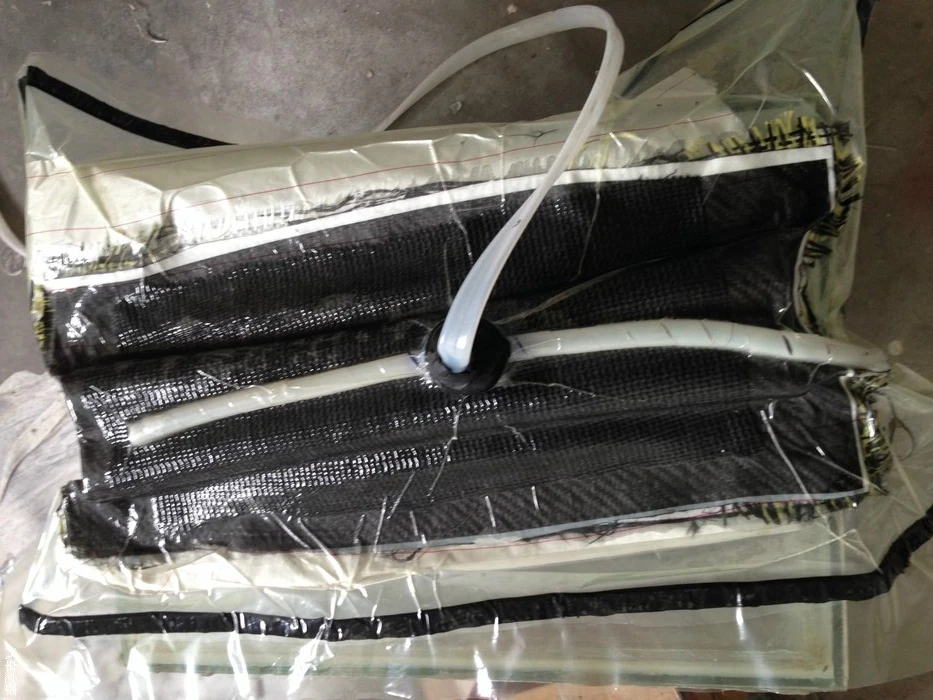

ApplicationsCarbon fiber composite materials have been widely used as automotive interior materials because of their good strength, toughness, heat resistance and aging resistance, which can improve the shortcomings of traditional plastic products with high brittleness and poor durability. At the same time, the use of carbon fiber inner and outer decorative materials, not only achieve the car lightweight effect, but also simplifies the parts manufacturing process, reduces parts processing, assembly, maintenance costs, and reduces production costs.Besides, as the high-performance fiber materials have the characteristics of light weight, high strength, large design freedom,a large market has been formed in the field of sports equipment, such as paddles, hockey sticks, snowboards, golf clubs, bicycles, tennis rackets etc.In addition, carbon fiber reinforcement materials are also favored in construction projects such as repair and reinforcement of various types of bridge houses.

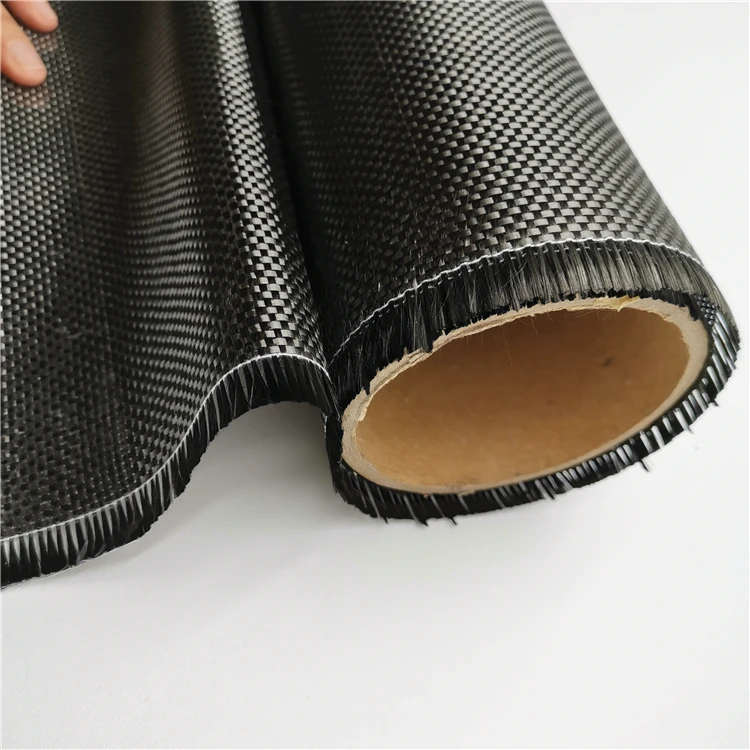

Packing and ShippingPACKAGINGProduct is manufactured in form of a roll wound on a paper tube. Each roll is packed in a plastic bag and placed within a cardboard carton. Positioned securely on to a pallet, strapped and covered. Customized dimension and packaging also are welcome.SHIPPINGFor large cargo and not urgent needed, we recommend to ship by sea.For urgent needed goods, by air is more suitable.For samples, it is available to ship by DHL/Fedex/UPS/TNT/EMS or other way expressSTORAGEIt is recommended that the product are stored in a cool and dry environment . Recommended temperature range of storage is between 10-30℃ and relative humidity between 50-75%. The product should remain in the packaging until just prior to use. Pallets should be stacked only one high.
Related ProductsWhy Choose Us
High quality Processes and batch tracing management Raw material,carton,tube stock Quality control management Lead time Lead time for new customer Within 7 days for trial order Lead time for regular customer- we have their order in scheme Within 15 days for one container order Considerate service Customer oriented, OEM service We accumulated rich experiences in client service Deal with customer feedback within 24 hours We take responsibility for every batch of products shipped outCompany Profile
SUNSHINEWe“Tongxiang Sunshine Trading Co., Ltd. “ is located in Tongxiang City, Zhejiang Province, which is in the center of three prosperous cities, Shanghai, Hangzhou and Suzhou. Growing in the economic belt of the Yangtze River Delta, its traffic is extremely convenient. There is a national 5A-level tourist scenic spot – Wuzhen, which is also the permanent venue of the World Internet Conference.It also has the world's outstanding fiberglass manufacturer – China Jushi Group and many large composite materials’manufacturers. We have factories in Tongxiang City and Jiangsu province. Relying on such a superior environment, we have an experienced management team and a group of passionate and young salesman, will serve you sincerely. Our main business covers vacuum infusion materials,fiber materials and structral core materials.As a hot selling product,PEEL PLY has been exported to dozens of different countries and regions in the world and served many large wind-blade manufacturers in domestic and abroad as well as different kinds of FRP products manufacturers. We sincerely seek opportunities at home and abroad.We will provide high quality and considerate service for you. We wish to establish long-term and stable relationship with you from all over the world based on a win-win situation.FAQQueston1 What does your company doing?Answers: Sunshine company main doing with peel ply and FRP materials, we can provide all range of productsQueston2 What is your payment?Answers: Sunshine Company normal payment is 30% deposit and balanced according the copy of B/L. Trade Assurance also is acceptable.Queston3 Can you provide sample?Answers: Yes, we can provide sample which costs is under USD 50.00 and weight less than 2 kgs.Queston4 What about the lead time?Answers: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
