Specification
| PVC Tarpaulin Roll | ||
| Process | WAX Dipping Coating | |
| Weight | 1000g/m2 | |
| Thickness | 1.0MM | |
| Color | Pantone PMS | |
| Basic Fabric | 1000 Denier / 1100 Dtex | |
| Construction | 30 x 32 Fd / Inch | |
| Finish | Glossy / Matte | |
| Lacquer | N/A | |
Popular PVC Coated Tarpaulin Roll Materials
PVC Coated Tarpaulin Roll Materials Meets Various Industries Applications. Most of Items We Have Stock in 1.5 M / 3.0 M. Our Stock Regular Color In White, Green, Blue, Yellow.| Article | Description | Basic Fabric | Weight | Properties |
| 1 | Coated Tarpaulin | 250 x 250 36 x 38 | 240 g/m2 | Anti Static |
| 2 | Coated Tarpaulin | 500 x 500 28 x 36 | 500 g/m2 | UV Proof |
| 3 | Coated Tarpaulin | 500 x 1000 30 x 17 | 400 g/m2 | Ripstop Tarpaulin 5CM |
| 4 | Coated Tarpaulin | 840 x 840 18 x 18 | 420 g/m2 | Knitting Fabric |
| 5 | Coated Tarpaulin | 1000 x 1000 18 x 18 | 500 g/m2 | UV Proof |
| 6 | Coated Tarpaulin | 1000 x 1300 18 x 17 | 600 g/m2 | Twisted Tarpaulin |
| 7 | Coated Tarpaulin | 1000 x 1300 18 x 20 | 600 g/m2 | Ripstop Tarpaulin 5CM |
| 8 | Coated Tarpaulin | 1000 x 2000 10 x 20 | 600 g/m2 | Half Panama Tarpaulin |
| 9 | Coated Tarpaulin | 1000 x 1000 20 x 20 | 500 g/m2 | UV Proof |
| 10 | Coated Tarpaulin | 1000 x 1000 20 x 22 | 550 g/m2 | Twisted Tarpaulin |
| 11 | Coated Tarpaulin | 1000 x 1000 23 x 23 | 650 g/m2 | Boat Fabric |
| 12 | Coated Tarpaulin | 1000 x 1000 23 x 23 | 680 g/m2 | Ripstop Tarpaulin 2CM |
| 13 | Coated Tarpaulin | 1000 x 1000 23 x 23 | 850 g/m2 | Blockout Tarpaulin, 95% Opaque |
| 14 | Coated Tarpaulin | 1000 x 1000 24 x 25 | 650 g/m2 | Tent Tarpaulin, Lacquer, F R |
| 15 | Coated Tarpaulin | 1000 x 1000 26 x 28 | 1000 g/m2 | Boat Fabric |
| 16 | Coated Tarpaulin | 1000 x 1000 30 x 30 | 900 g/m2 | Panama Tarpaulin, Lacquer, FR |
| 17 | Coated Tarpaulin | 1300 x 1300 28 x 28 | 1250 g/m2 | Anti Wick Tarpaulin, Lacquer, FR |
PVC Coated Tarpaulin Is Made By PVC Resin Coated Onto 1-layer Mesh Fabric. It Was Mainly Used For Sheets, Membrane, Covers, Awning, Tents, Shades, Curtains. Coated PVC Tarpaulin Could Meet Standard Flame Behaviors, Cadmium Free, En 71-3, Reach Regulations, Anti Static, And Other International Standard. PVC Tarpaulin Rolls Widths From 1.0mts -5.1mts, Weight From 240gsm -2700gsm, And Thickness From 0.19mm -2.0mm.
High Tenacity Industries Yarn
Polyester High Tenacity Yarn For Industrial Technical Textile Stands Out High Durability, Toughness And Chemical Resistance To Withstand Extreme Environments. Our Wide Choice Of PVC Coated Tarpaulin Counts Range From Dtex 330 Up To Dtex 16500. Our PVC Tarpaulin Materials Yarn Mainly is High Tenacity Low Shrinkage, Also Have Twisted Polyester Yarn, Ripstop Polyester Yarn ( For Mining ) , Anti – Wick Polyester Yarn ( For Tent, Awning, Roofing ) , Panama Weave Polyester Yarn ( For Curtainsider ) , As Well High Tenacity High Shrinkage Polyester Yarn ( For Tank, Sail Cloth ) .PVC Resin
PVC Pastes Are Liquid Or Semi-liquid Suspensions, Comprising – As The Essential Components – Paste Grades PVC Polymers And Plasticizes: Various Additives Are Also Usually Present In A Paste, As Required For Processing And Product Properties. Such As Stabilizers, Agents, Pigments, Lubricants, Solvents, Flame Retardant, DINP, Anti Wick. Most of Our PVC Resin From HANWHA, LG, TIAN YE, Formosa. Our Standard PVC Tarpaulin Resin is PSM-31, P-450, P-440.
Coating Process
Knife Coating Is A Process Where An Excess Of PVC Resin Coating Material Has Applied To The Woven Polyester Or Nylon 66 Substrate And Removed By A Measurement Blade To Achieve The Desired Coating Thickness. We Use Traversing Quality Guidance System The Happyway Can Measure And Control Critical Process Parameters On The Running Tarpaulin Roll Process Across The Entire 3.4M Width Of The Tarpaulin Product. We Obtain High Measuring Sensors To Handle Diverse Vinyl Coated Polyester Fabric Tasks.Finish Process
TAK Provide PVC Coated Tarpaulin Finish Processes. Such As Single Side / Double Side Acrylic Lacquer, PVDF Lacquer, Silver Lacquer, Gold Lacquer, TiO2 Lacquer, Leather Embossed, Diamond Embossed, Cloth Embossed, 3D Embossed, Litchi Embossed, Tatami Embossed, Rhino Skin Embossed, Calfskin Embossed, Buffalino Embossed, Snake Skin Embossed, Grid Embossed, Custom Logo Embossed, Stripe Print, Leaf Print, Mosaic Print, Grid Print, White / Black Print , Camouflage Print, Lettering Print.
Tarpaulin Type
Manufacture Different Kind of Tarpaulin Materials To Meet Specific Industry Applications.
RIP-STOP PVC TARPAULIN
Ripstop PVC Is Made From A Tough Rip-Stop Weave 1 x 1 Per CM To Reduce Rip Tear -Stop Spread.
Single – Sided PVC Tarpaulin
Single – Sided Coated PVC Tarpaulin With 23 x 23 / 30 x 30 Per Inch For PVC Keder Product .
Two – Color PVC Tarpaulin
Times Of Coating Process For Two-Color Of A Tarpaulin. Bring Tarpaulin Versatile All-Around Applications.
Fluorescence PVC Tarpaulin
Fluorescence PVC Tarpaulin Has Fluorescence Orange, Green, Red, Yellow Meet 5 Months UV-Proof.
Silver Lacquer Silver Tarpaulin
ROWAKRYL Silver Lacquer Silver Tuck Side Curtain Tarpaulin To Help Minimize The Migration of Plasticizes.
Embossed PVC Tarpaulin
3D Embossed PVC Tarpaulin Roll Materials Offers A High-Quality Textural Contrasting Effect Surface.
Mesh Tarpaulin
100% Polyester Dipping Coating Vinyl Mesh Fabric With 35% -70% Air Flow Property For Industries Applications.
Clear PVC Tarpaulin
Crystal Grade PVC Tarpaulin With Reinforcement High Tenacity Polyester For Windows And Curtains.
Laminated PVC Tarpaulin
3-Layer Hot Laminated PVC Tarpaulins Materials For Waterproof Covers, Shields, Awnings, Halls And Tents .
Tarpaulin Certifications
Our Tarpaulin Materials Passed Many Several Standards And Test Procedures By World- Recognized Organizations. Such As Tensile Strength, Tear Strength, Flammability, Cold Craking, Chemical Properties.
Strength Test By ZTT
REACH REGULATION BY INTERTEK
B1 Standard Flammability BY TUV
Applications
Our Company TAK Techtextil Industries Profile
TAK Techtextil Industries Co. Is A Factory Specialized In Tarpaulin Materials And Products. 90% Our Business For Oversea Exporting, And Europe Market Is Our Main Market. We Work With Famous Brand
Certifications
We Are Membership Of Industrial Fabrics Association International (IFAI), A Dun & Bradstreet Certified Company. We Are ISO 9001 And ISO 14001 Certified Company. We Have Passed BSCI And Sedex Factory Audit, Disney ILS Audit, Amazon FQA Audit.
ISO 9001: 2015
Registration No.: 0350217Q30491R0S. ISSUED: DEC-06-2017
BSCI AUDIT
Audit ID: 141289. ISSUED BY TUV
FACTORY QUALITY AUDIT
AMAZON Program ISSUED BY TUV

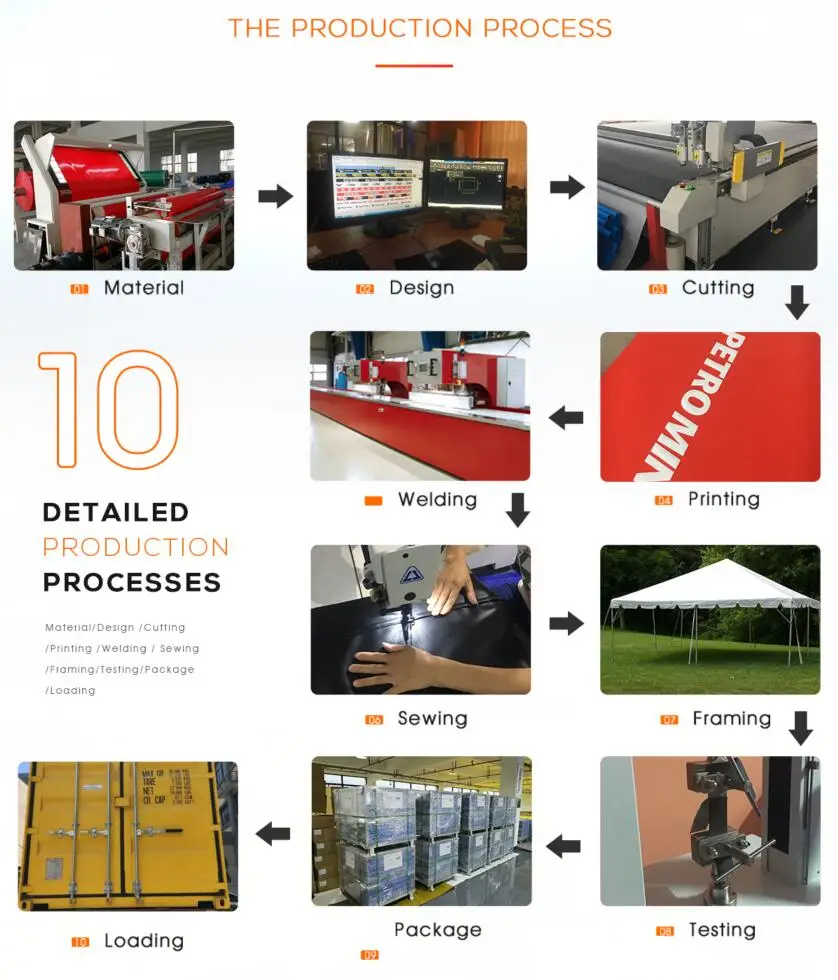

Production Process
TAK Techtextil Industries Co.Produce Tarpaulin Materials And Products. From Tarpaulin Sheet to Framing Construction and Onsite Engendering. 1. Team With More Than 12 Years Exporting Experience; 2. Machines From Europe; 3. Factory Facilities Exporting Standard ; 4. Price Advantage From Raw Materials to Finish Products; 5. QC staffs in House; 6. ISO 9001 & ISO 14001, BSCI & Sedex Audit; 7. Designers in House.
FAQ Q1. Can I have a sample order for Tarpaulin?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 2 weeks for order quantity more than 3000M
Q3. Do you have any MOQ limit for tarpaulin order?
A: Low MOQ, 1 roll for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Vessel. It usually takes 20-35 days to arrive.
Q5. How to proceed an order for tarpaulin?
A: Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on tarpaulin product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
