Product Description

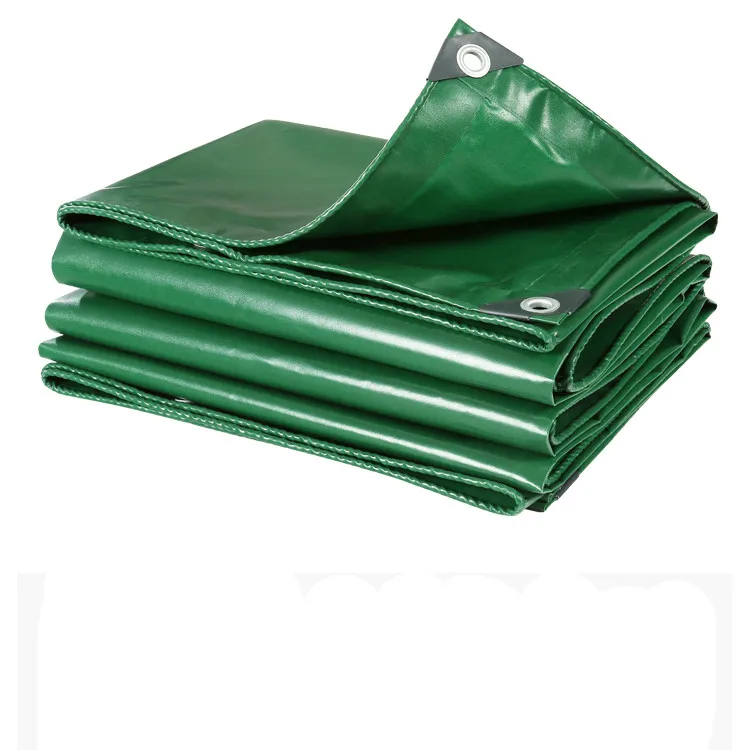

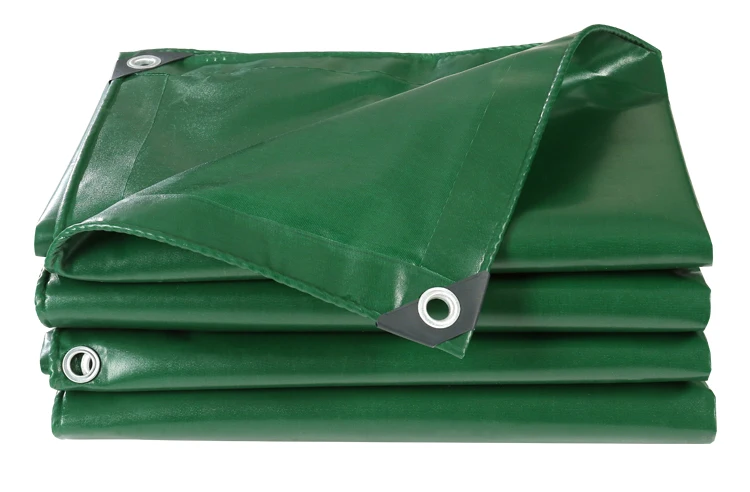

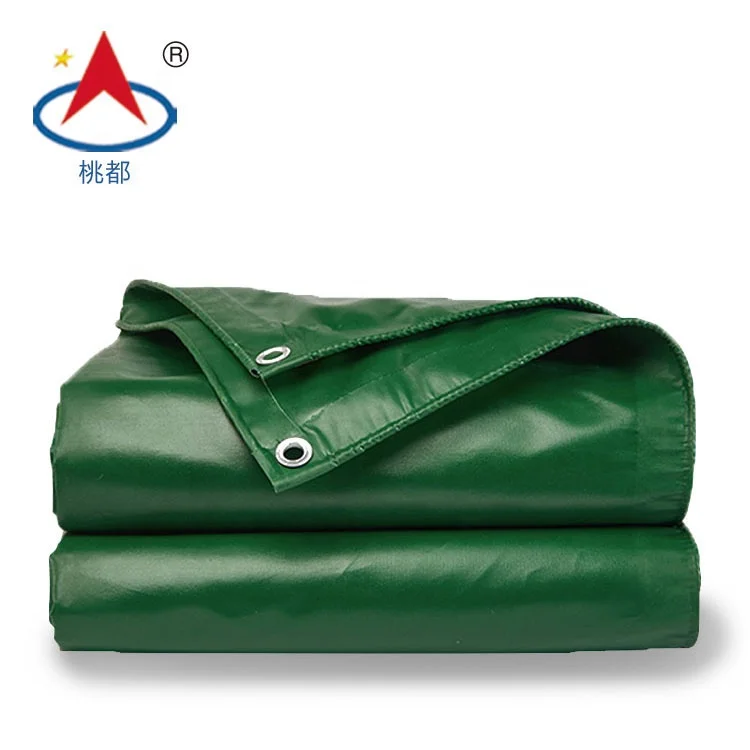

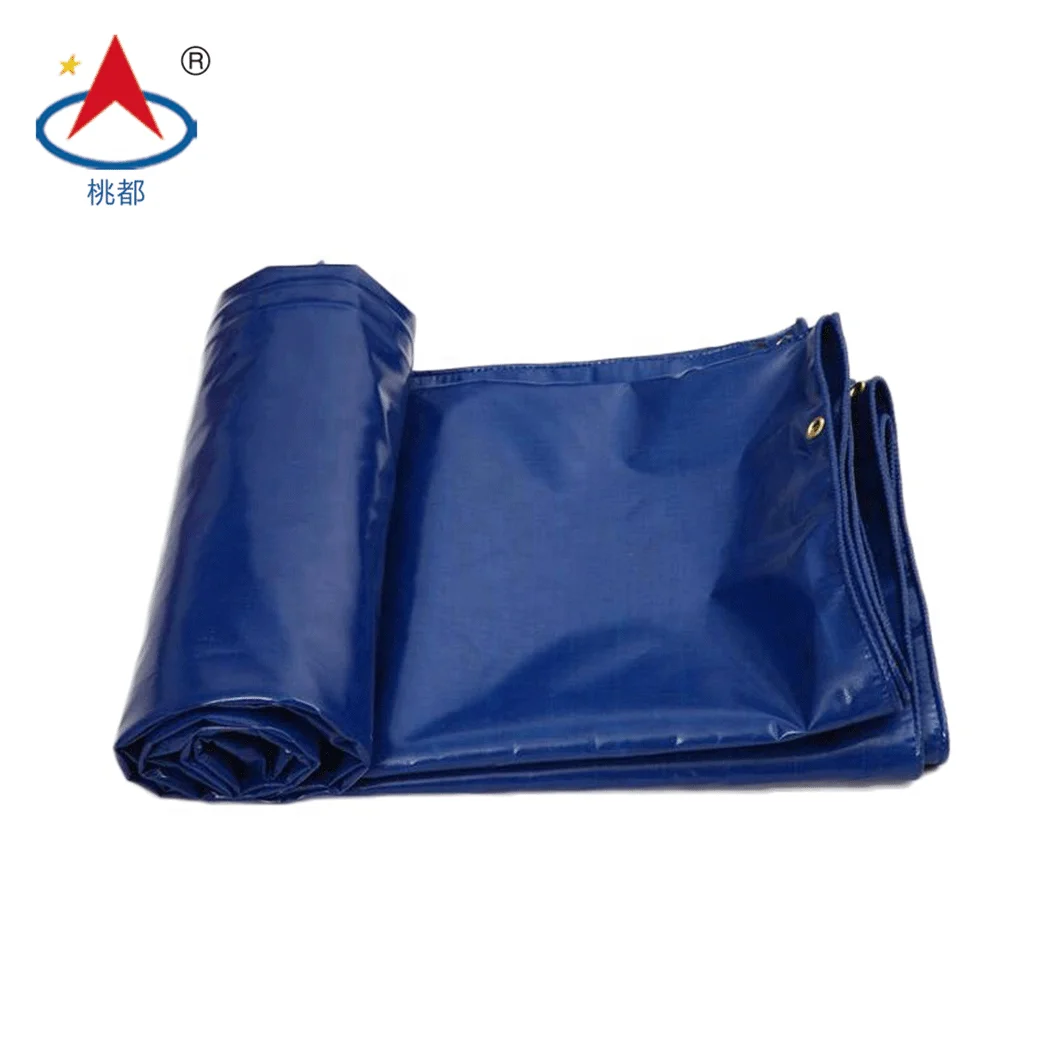

PVC Coated Tarpaulin

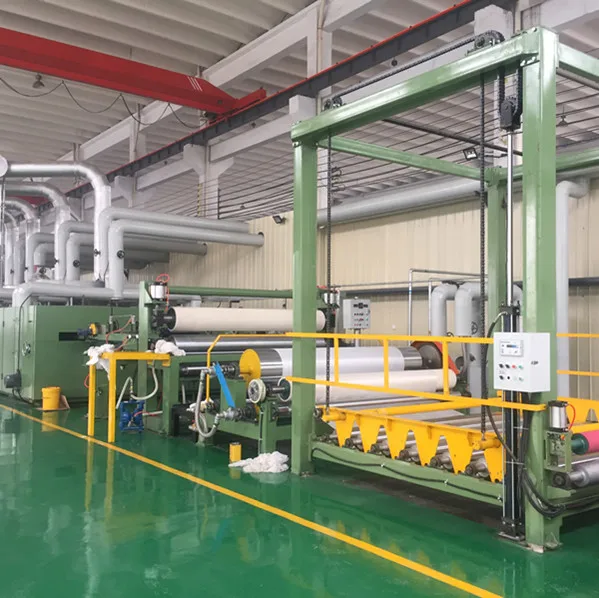

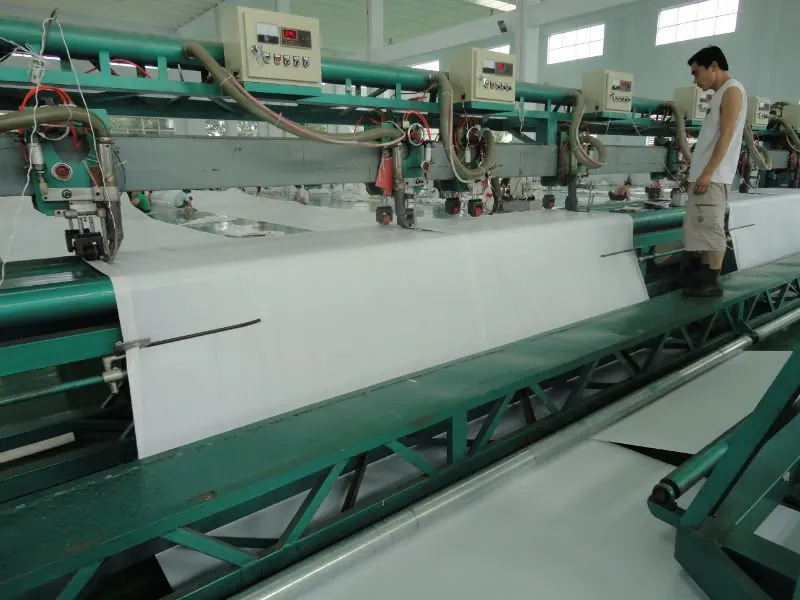

Heng Feng PVC Coated Tarpaulin is produced by digital control coating machine which composited PVC paste on polyester fiber substrate by roller coating, then it is heated by temperature regulating device and pressed on the tarpaulin accurately, cooling to be finished product afterward.
PVC Coated Tarpaulin
Specifications :2*2/3*3
Width :1.5m~2.0m
Length :100m per roll
Weight: 550g/Sq m~700g/ Sq m (±10g/ Sq m)
Thickness :0.45mm~0.60mm (±0.02mm)
Note: The products with special specifications can be made according to the customers' requirement.
1. Excellent waterproof performance, anti-permeable ≥ 20KPa. 2. Obvious mildew proofing and inflame-retarding properties, flame retardant ≤ 10 seconds.
3. Anticorrosion including: acid, alkali and brine corrosion, and etc.
4. Heat resistance, and be able to adapt to variety of open-air natural conditions.
5. Good low-temperature flexibility, this fabric will not be fractured by pliers at -30℃.
6. Almost no absorbable of water, drying quickly after the rain without adding weight, convenient in usage.
7. Heat combined with high-frequency, which guaranteed this fabric water tight and will not crack.
8. High strength of tensile.
9. Light, 500 to 800 grammas per square meter.
| Item | HFT013 | HFT014 | HFT015 | HFT016 | HFT017 | HFT018 | Unit | |||||||||
| Weight | 560 | 580 | 580 | 610 | 660 | 680 | g/m2 | |||||||||
| Base fabric-Polyester | 2*2 | 2*2 | 2*3 | 2*3 | 3*3 | 3*3 | Denier | |||||||||
| Threads | 38*28 | 42*28 | 42*30 | 38*26 | 31*25 | 43*29 | Threads/inch | |||||||||
| Tensile Strength | L | ≥1850 | ≥2000 | ≥2000 | ≥1850 | ≥2100 | ≥2500 | N/5cm | ||||||||
| W | ≥1100 | ≥800 | ≥1500 | ≥1500 | ≥1500 | ≥1700 | N/5cm | |||||||||
| Tearing strength | L | ≥70 | ≥70 | ≥140 | ≥120 | ≥120 | ≥120 | N/5cm | ||||||||
| W | ≥70 | ≥70 | ≥70 | ≥80 | ≥110 | ≥80 | N/5cm | |||||||||
| Elongation | L | ≤23 | ≤23 | ≤17 | ≤22 | ≤23 | ≤13 | % | ||||||||
| W | ≤24 | ≤17 | ≤10 | ≤24 | ≤24 | ≤10 | % | |||||||||
| Color Fastness | ≥5 | Grade | ||||||||||||||
| Applicable | -30~-70 | ℃ | ||||||||||||||
| Width | 1.0~2.1 | m | ||||||||||||||
| Packing | Hard paper tube+Kraft paper | |||||||||||||||
| Customized products can be made according to customers' special needs | ||||||||||||||||

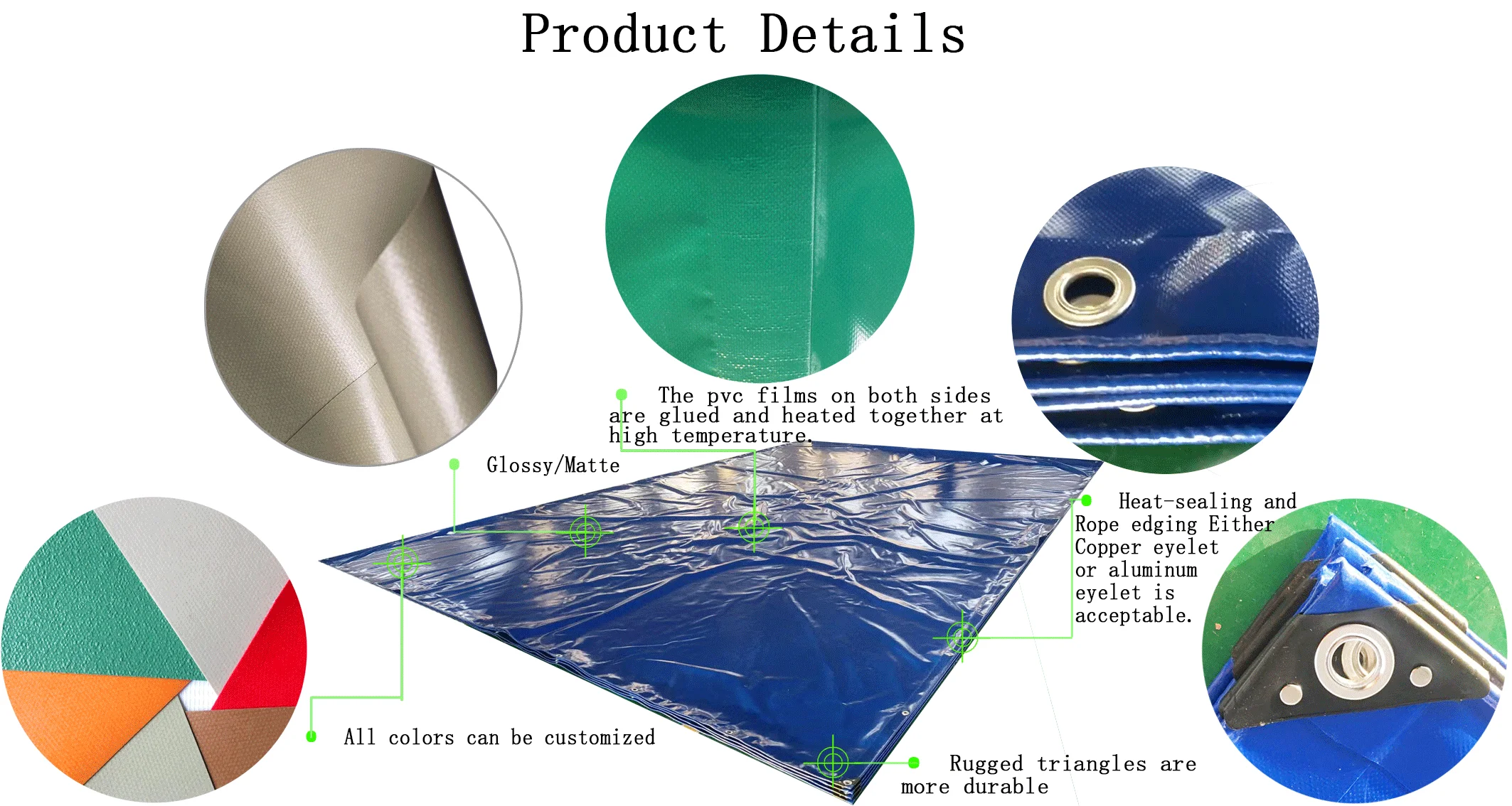

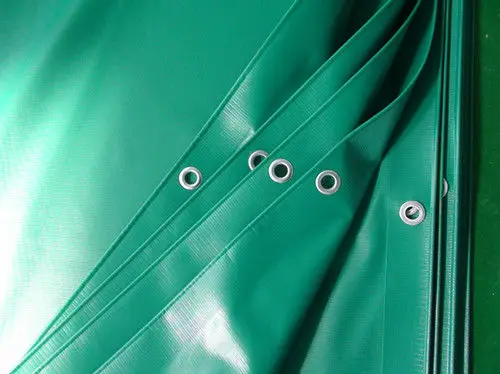

Glossy surface

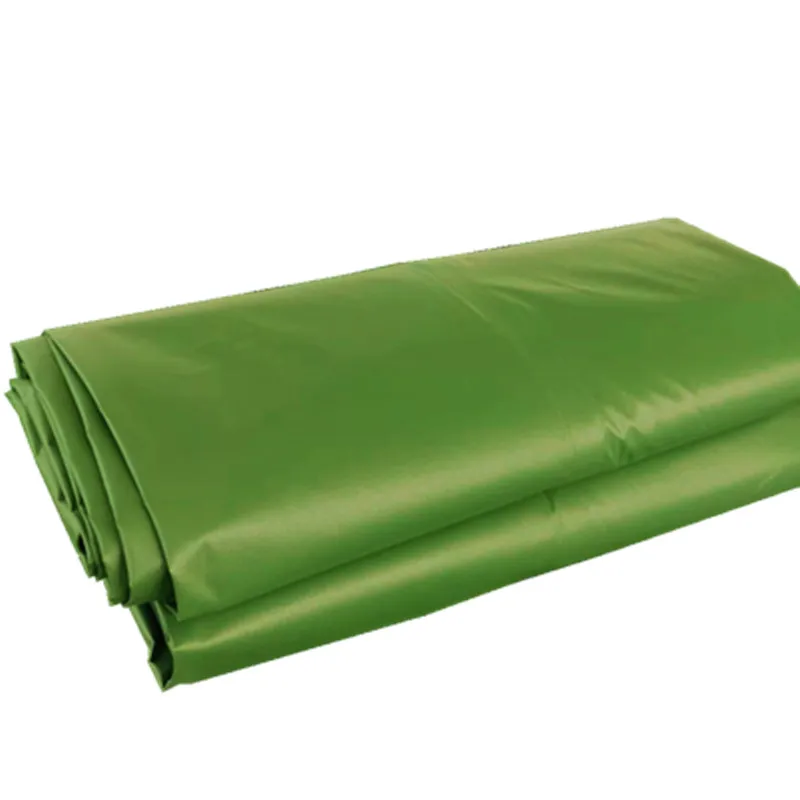

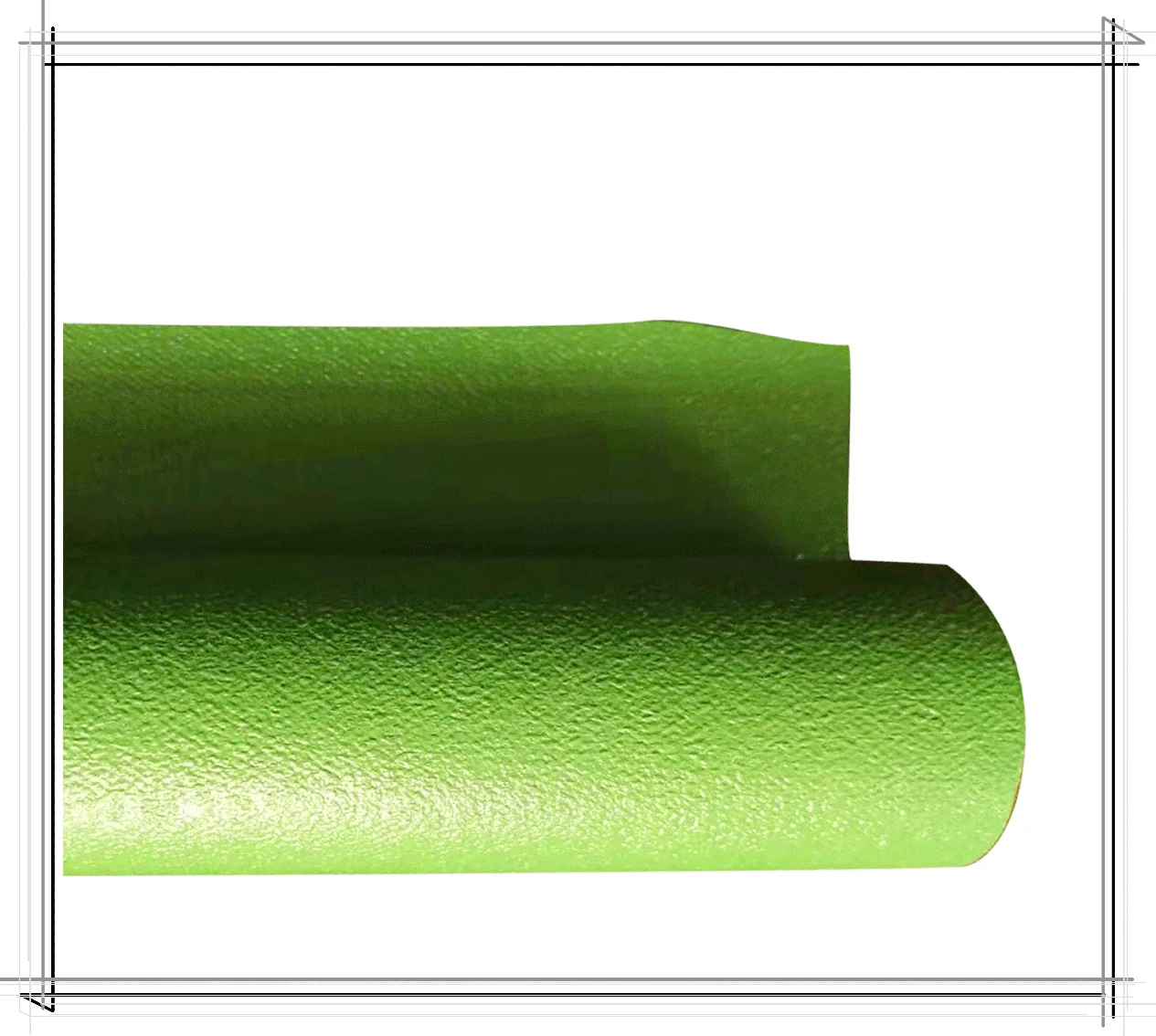

Matte surface

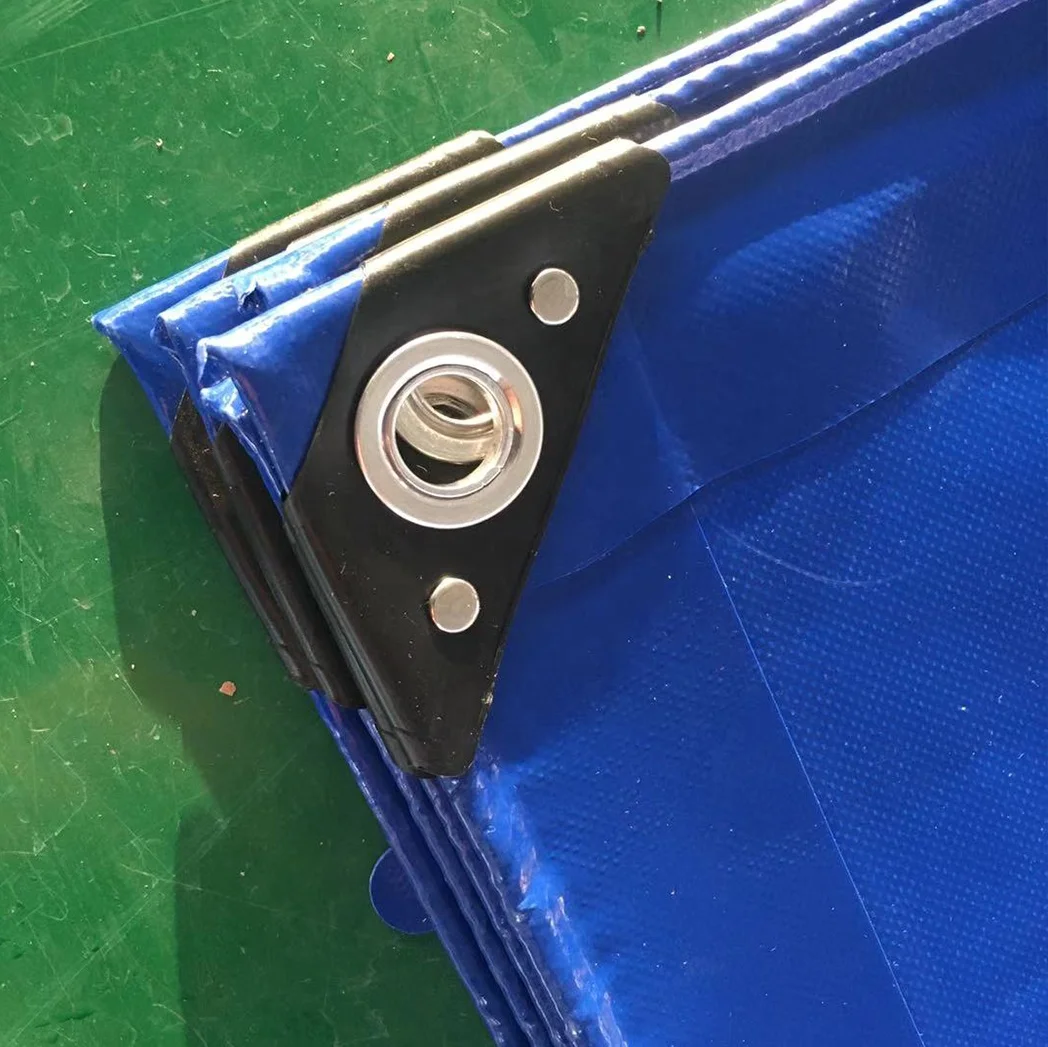

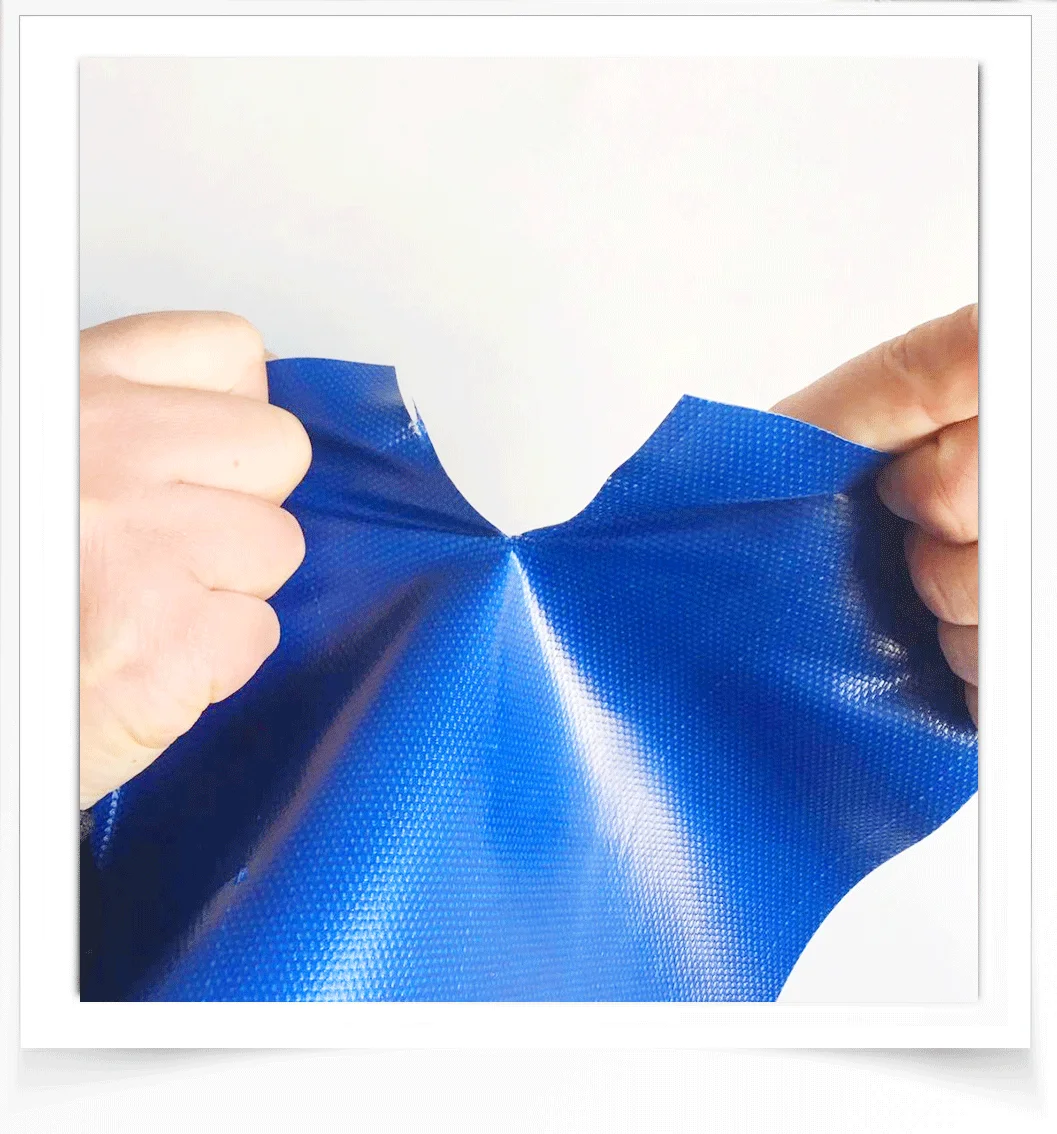

tear-resistant
fireproof
waterproof Application PVC coated Tarpaulin

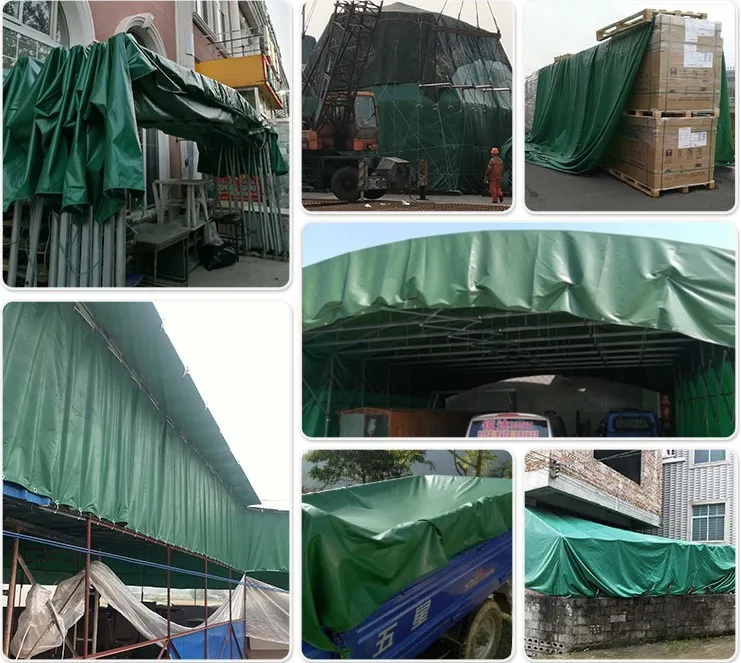

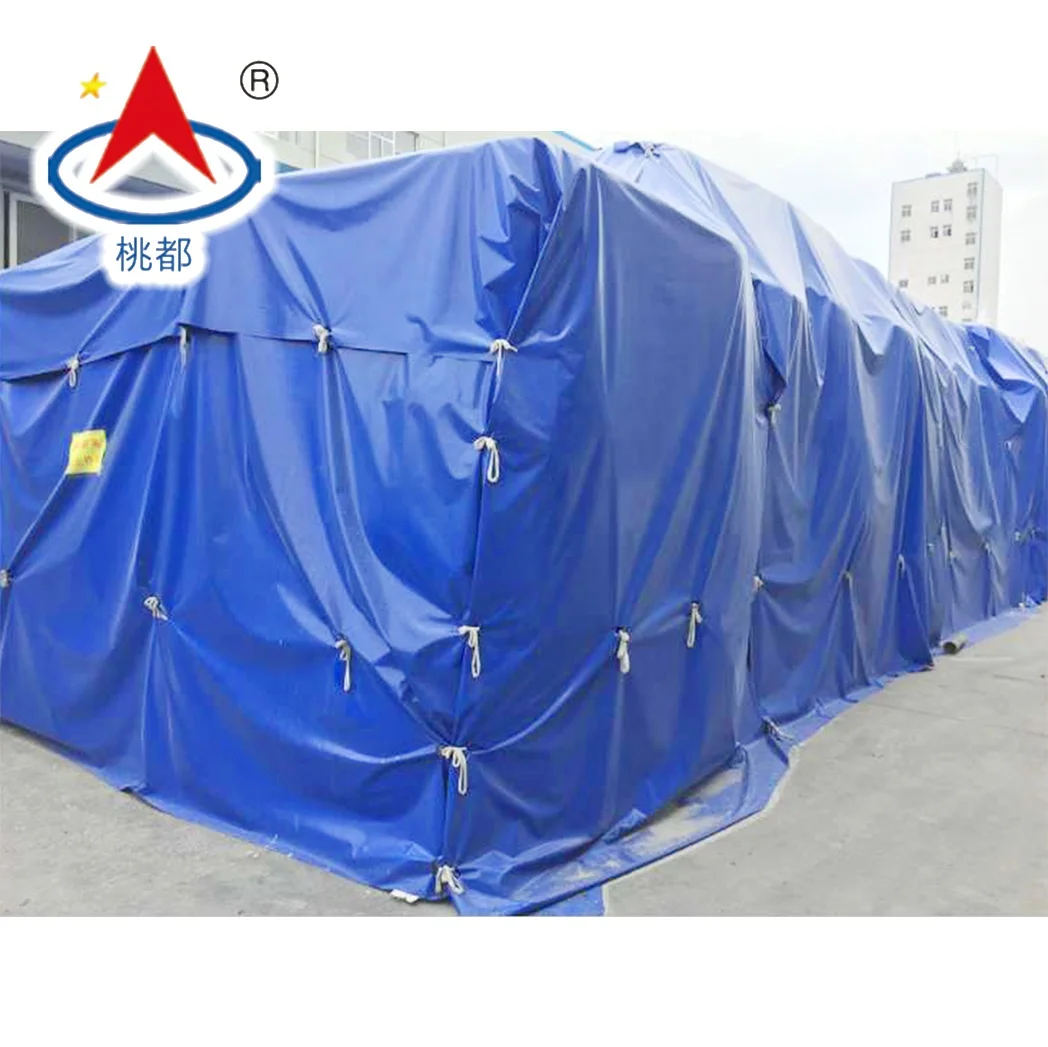

Since Heng Feng PVC Coated Fabric have the features of high-strength, superior waterproof performance, self-cleaning, corrosion-resistant, long service time, and the excellent physical and chemical properties, as repetitive and long-term use in a wide range, the product can be applied to construction, transportation, warehousing , mines, sunshade, and other areas of entertainment.

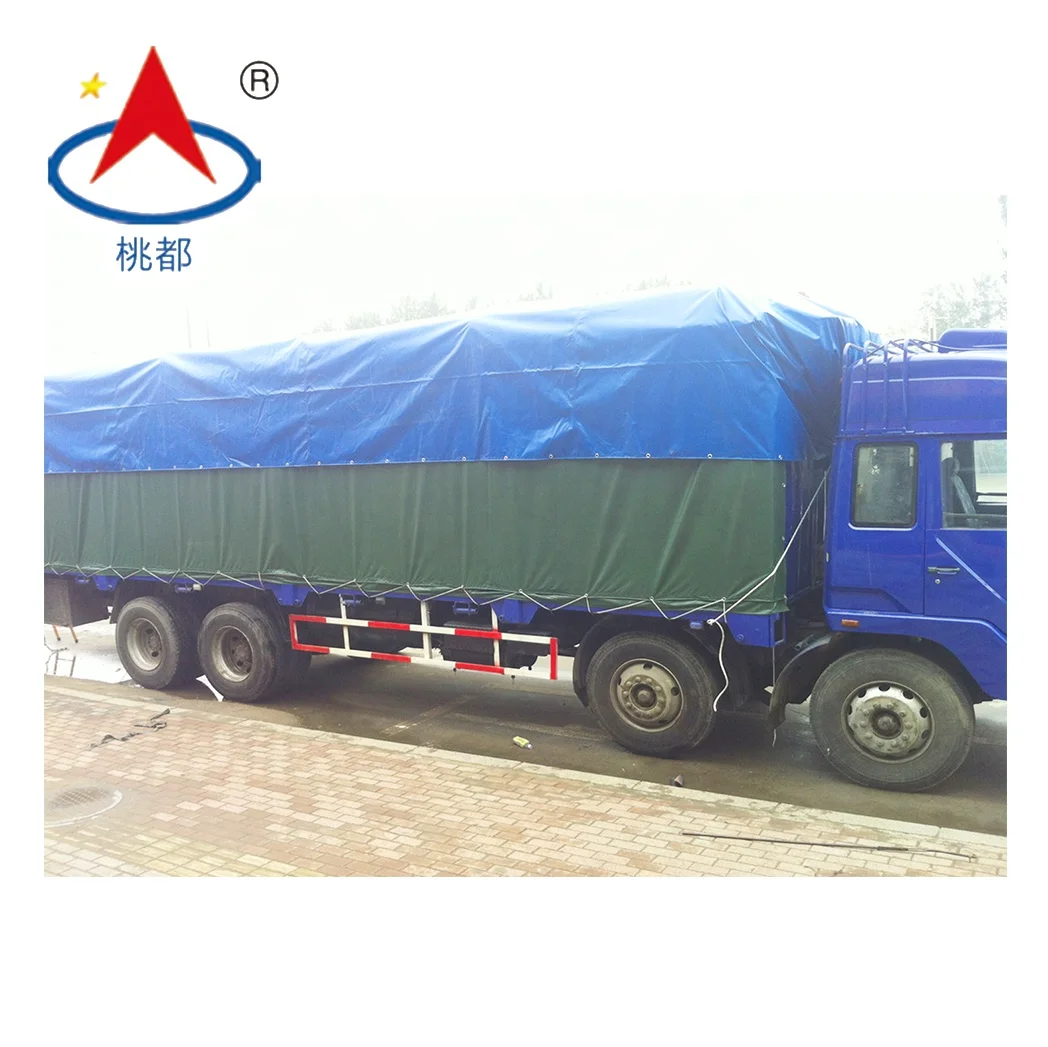

-To be used as all kinds of PVC Tarpaulins.– To be used as Truck covers, Boat covers, Lumber covers, Steel covers, etc.
– To be used as Air Duct for delivering hot and cold air.
– To be used as Tent materials. Packing & Delivery

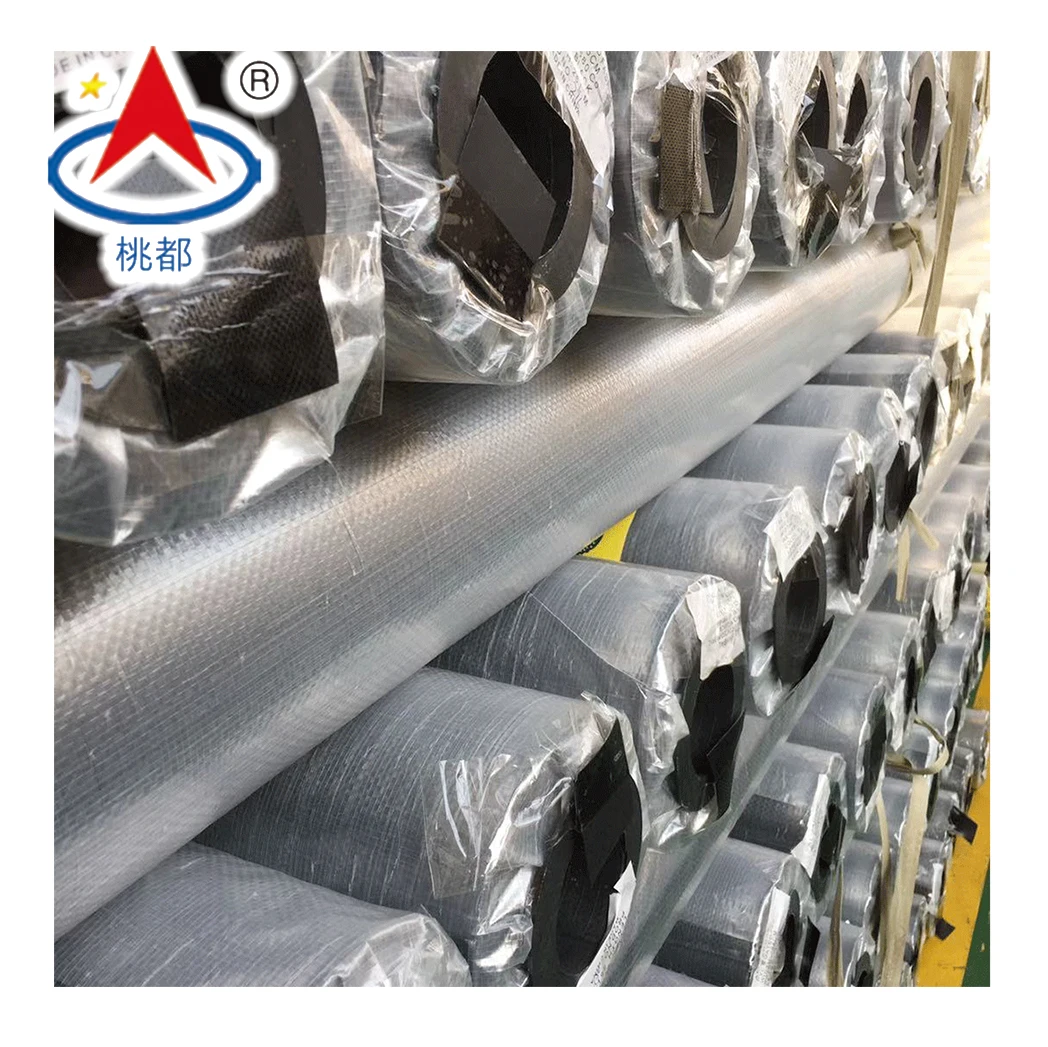

PE Roll Packing
Kraft paper Roll Packing

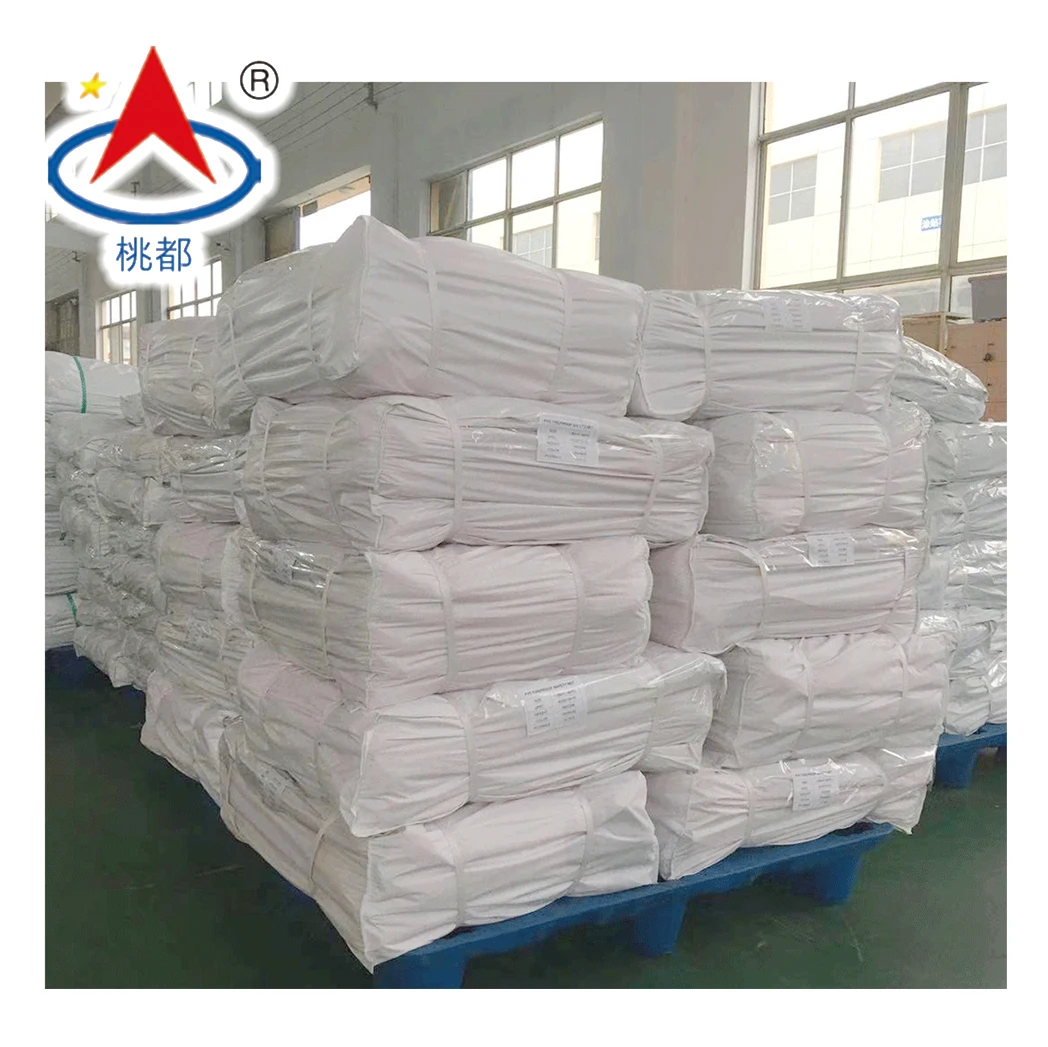

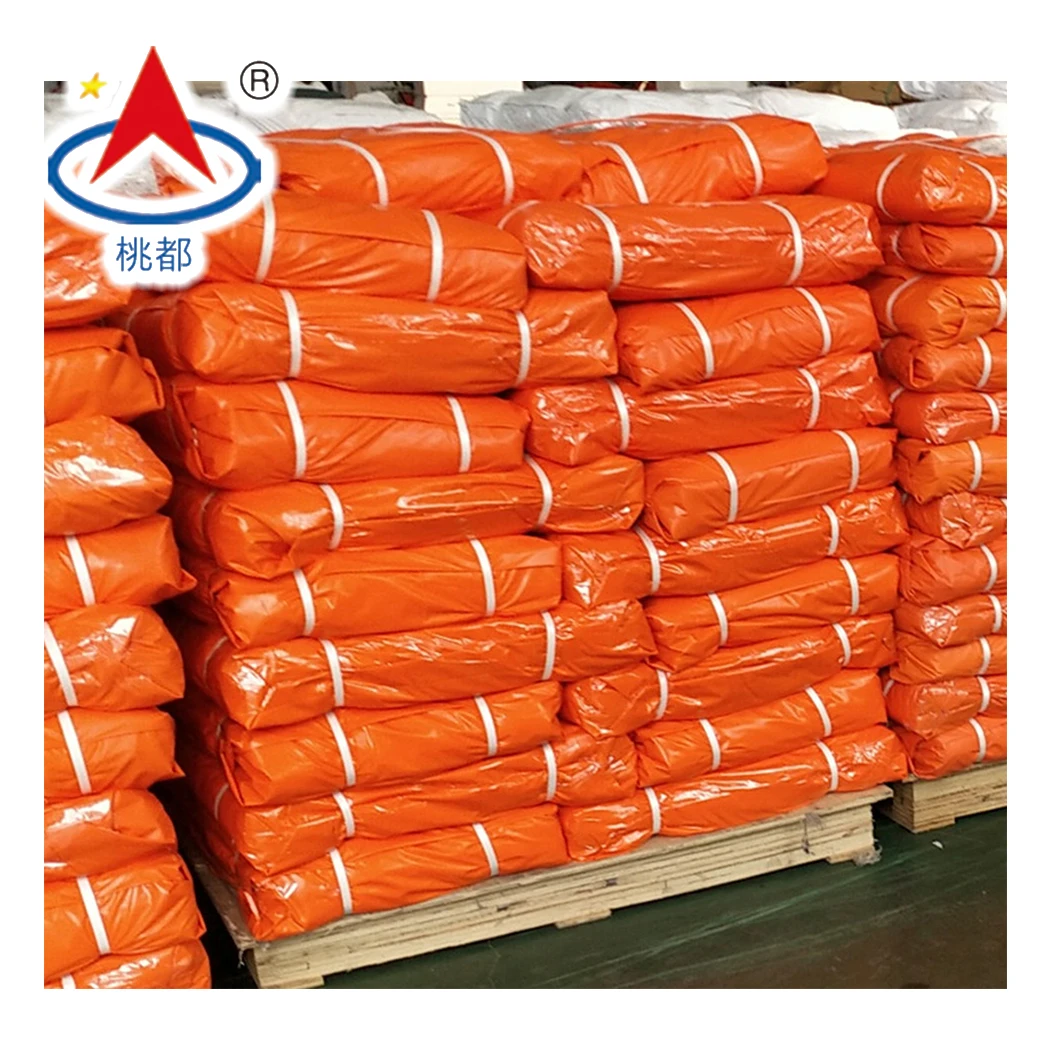

Orange bale package
White bale package Certifications
